Test Connectivity

In this section, you will use the EC2 instances in the public and private subnets of your VPC to test the connectivity for the network foundations you created in the previous section.

  1. In the Instances section of the EC2 console

    • Select the VPC A Public AZ2 Server instance
    • Scroll down to the Details tab
    • Copy the Public IPv4 address field by clicking the copy icon to the left of it

    EC2 Details

  2. To ping the instance, you need to open your CLI. On Windows, open the Command Prompt. On Mac, open the Terminal.

  3. Type ping then a space, then paste the Elastic IP from above, then space then -c 5 and enter.

    If the instance is reachable, we expect to see lines appearing such as

    EC2 Public ping response

    Good job! You have successfully confirmed connectivity between the public EC2 instance and the internet.

    Public Instance Connectivity

    Test Private Instance Connectivity

  4. In the Instances section of the EC2 console

    • Select the VPC A Private AZ1 Server instance
    • Click on the Connect button

    Select Private EC2

  5. In the following screen, select the Session Manager tab and click Connect

    Session Manager

    This will open a terminal from which you can test connectivity to both the public instance at 10.0.2.100 and external connectivity to example.com via the NAT Gateway.

  6. Copy the following ping commands and paste in the Session Manager console

  ping 10.0.2.100 -c 5
  ping example.com -c 5

You should receive responses both from the public EC2 instance and example.com

EC2 private ping

Important

If the ping to 10.0.2.100 is not successful, please ensure you correctly configured the IP address in the EC2 Instances section

Congratulations you have now confirmed outbound connectivity from both instances

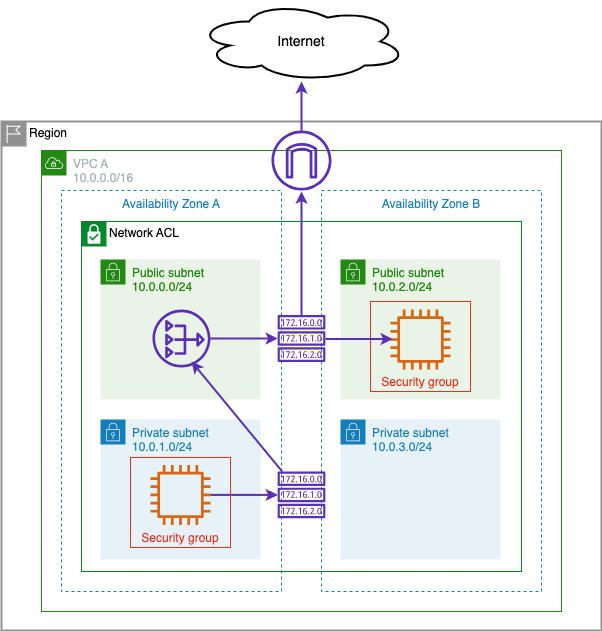

Private Instance Connectivity

Compare Gateway and Interface Endpoint Approaches

Interface Endpoint DNS

  1. Type the following to check the DNS for the KMS service from the VPC A instance:
dig kms.us-east-1.amazonaws.com

  1. The response should point to two local IP addresses within the VPC A private subnet CIDR blocks of 10.0.1.0/24 and 10.0.3.0/24

    Interface Endpoint Dig

    Because the VPC DNS is returning the IP addresses for the Elastic Network Interfaces placed into the private subnets by the Interface Endpoint rather than the public IP address for KMS, the traffic to KMS from VPC A will be routed to the VPC Endpoint rather than traversing the internet to reach KMS.

    Interface Endpoint Path

  2. Terminate the Session Manager session.

    Gateway Endpoint Routing

  3. Navigate to the VPC console, and select Route Tables

  4. Select the check box next to VPC A Private Route Table and scroll down to the Routes tab. It should show an entry pointing to the VPC Endpoint ID for destinations in the prefix list.

    GW Endpoint RT

    Because the S3 prefix list is a more specific route to S3 than the default route to the internet the traffic to S3 from VPC A will be routed to the VPC Endpoint rather than traversing the internet to the public S3 endpoint.

    GW Endpoint Path

We have created VPC Endpoints for S3 and KMS and confirmed that the local route table pointed to the VPC endpoint for S3 whereas the local DNS entry for KMS now pointed to ENIs in the private subnets rather than the public interface.
